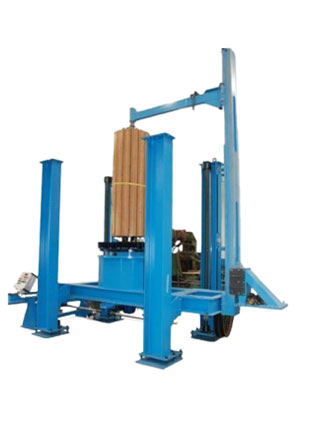

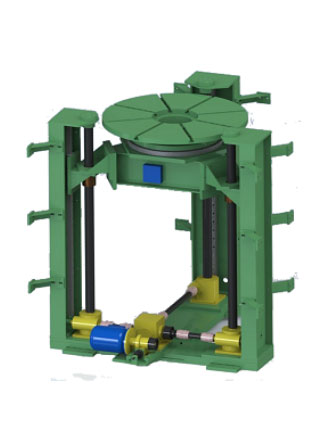

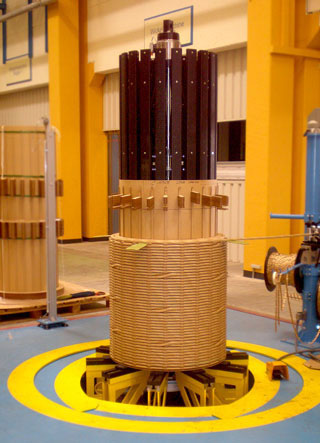

Vertical Winding Machine - High-Accuracy Coil Winding System for Transformers


A Vertical Winding Machine is designed for precise, stable, and efficient winding of HV/LV transformer coils. With its vertical axis, high-torque drive, and advanced tension control, it ensures uniform layering and accurate coil geometry. Widely used in power and distribution transformer manufacturing, this machine delivers superior winding quality, reduces defects, and enhances production efficiency

Key Features

    • Vertical winding axis for superior coil stability and accuracy

    • High-torque motor for smooth and consistent winding

    • Advanced tension control to ensure uniform conductor layering

    • Heavy-duty, vibration-free frame for precision winding

    • Digital/PLC control options for programmable coil parameters

    • Suitable for copper/aluminium conductors

Benefits

    • Produces high-quality, dimensionally accurate coils

    • Reduces winding defects and conductor damage

    • Enhances productivity and repeatability

    • Ideal for large coils requiring precise geometry

    • Simplifies complex multi-layer winding operations
