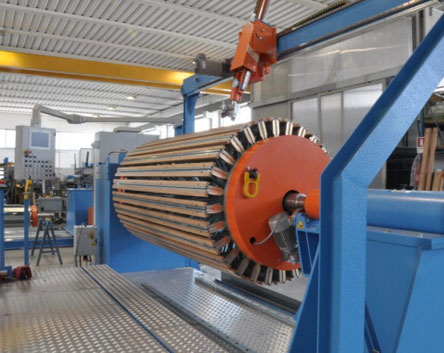

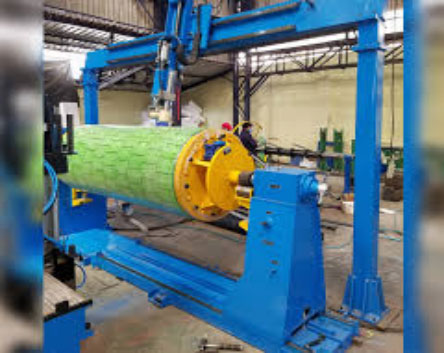

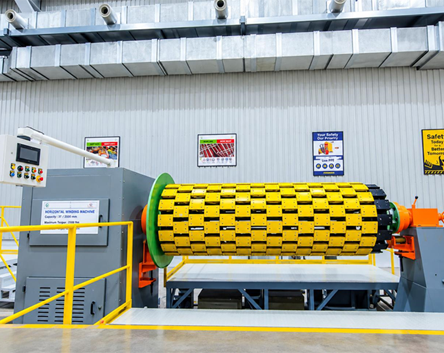

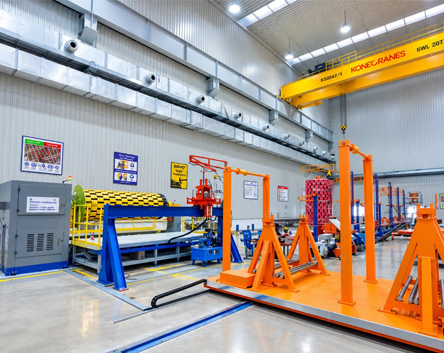

Horizontal Winding Machine - High-Precision Coil Winding Solution for Transformers


A Horizontal Winding Machine is designed for precise and efficient winding of LV/HV transformer coils and foil windings. Built with a high-torque drive, precision tension control, and a robust, vibration-free structure, it ensures uniform layering and consistent coil quality. Ideal for power and distribution transformer manufacturing, this machine improves production speed, reduces winding errors, and delivers reliable, repeatable performance.

Key Features

    • High-torque drive system for smooth and stable winding

    • Precision tension control for uniform conductor layering

    • Robust, vibration-free structure Robust, vibration-free structure

    • Digital/PLC controls Digital/PLC controls

    • Coil support for different coil sizes

    • Axial and Radial coil pressing attachment

    • Motorised Bobbing stand trolley

Benefits

    • Ensures high-quality and uniform winding

    • Reduces winding errors and conductor damage

    • Improves production speed and operator efficiency

    • Suitable for a wide range of LV/HV coils and foil windings

    • Delivers consistent, repeatable results for transformer manufacturing
