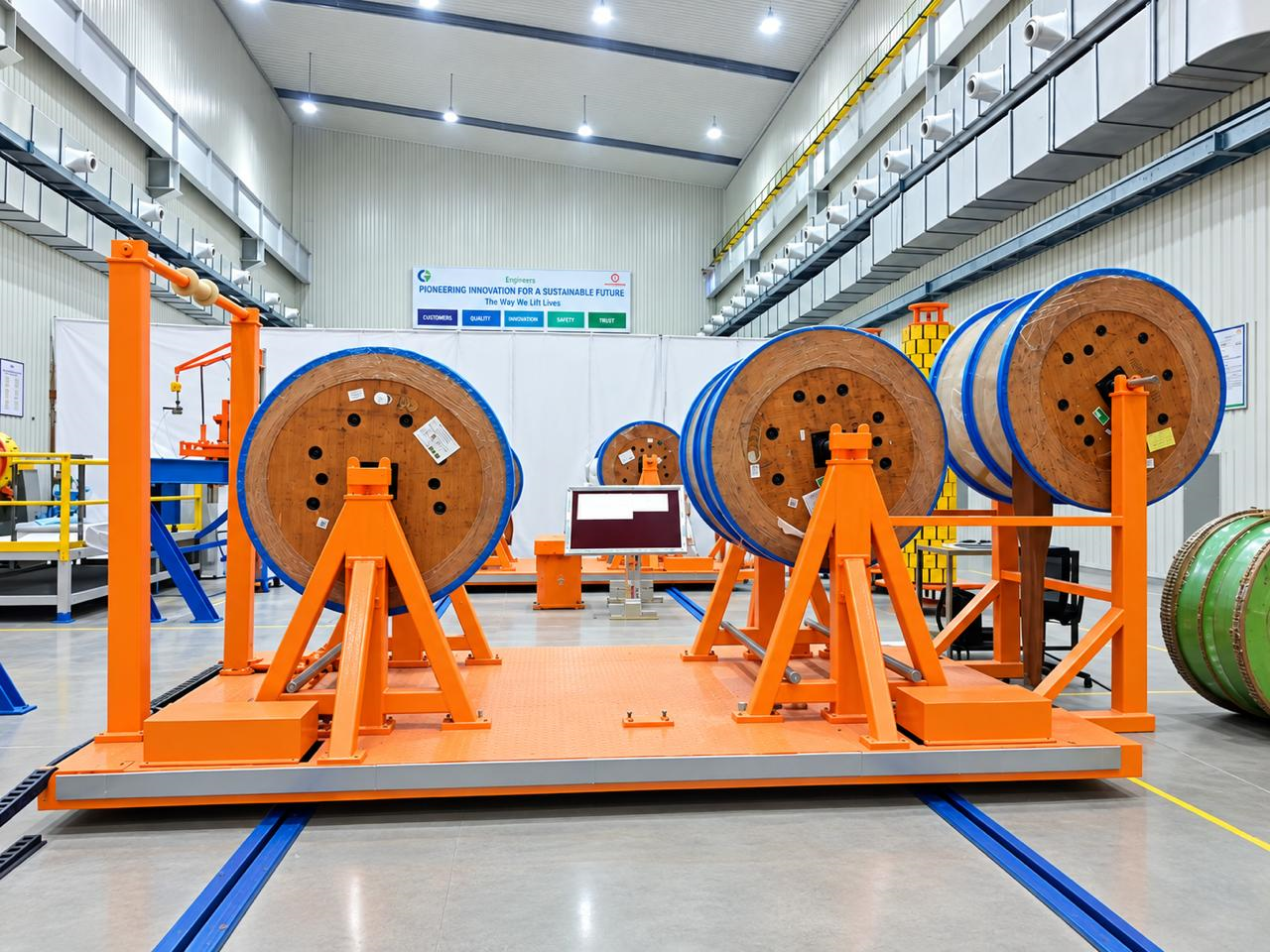

Bobbin Stand with Motorized Bobbin Trolley - Safe & Smooth Conductor Pay-Off for Transformer Winding
A Bobbin Stand with Motorized Bobbin Trolley is an essential accessory for transformer coil winding lines. The bobbin stand holds heavy conductor bobbins and feeds the conductor smoothly to the winding machine, while the motorized trolley moves loaded bobbins from storage to the stand with minimal manual effort. Together they give a controlled, tangle-free conductor supply and make bobbin changeover faster and safer.
Designed to work alongside our Horizontal Winding Machine and Vertical Winding Machines, the system handles copper and aluminium conductors, paper-insulated conductors and multiple bobbins at a time, as required for LV and HV coil winding.
Key Features
Heavy-duty fabricated bobbin stand for holding single or multiple conductor bobbins
Adjustable brake / tension control for smooth, even conductor pay-off
Motorized bobbin trolley for easy movement of heavy bobbins on the shop floor
Easy loading and unloading of bobbins with quick shaft locking arrangement
Push-button / pendant control for trolley operation
Suitable for different bobbin sizes and conductor types
Customized design to match your winding machine and shop layout
Benefits
Reduces manual handling of heavy bobbins and improves operator safety
Ensures uniform conductor tension for better coil quality
Prevents conductor twisting, tangling and insulation damage
Cuts down bobbin changeover time and machine idle time
Improves overall productivity of the transformer winding line
Applications
Power and distribution transformer manufacturing
LV / HV coil winding on horizontal and vertical winding machines
Reactor and special transformer coil winding
Conductor storage and transfer within the winding shop
